Product Details:
|
| Panel Size: | 20.1 Inch | Active Area: | 433.44×270.9 Mm |
|---|---|---|---|
| Outline: | 459.4×296.4 Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | lg lcd display,lg replacement screen |
||
20.1 inch Hard coating LM201W01-B5 LG Display with 433.44×270.9 mm Active Area
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Product Information:
| Panel Size : | 20.1 inch |
|---|---|
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.086×0.258 mm (H×V) |
| Pixel Pitch : | 0.258×0.258 mm (H×V) |
| Weight : | 2.95/3.10Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 433.44×270.9 mm (H×V) |
| Bezel Area : | 438.4×275.9 mm (H×V) |
| Outline Dimension : | 459.4×296.4 mm (H×V) |
| Outline Depth : | 23.7 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 7/9 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
| LH176J03-SH03 | LG Display | 1.8" | 220×176 |
| LH300WQ2-SH16 | LG Display | 3.0" | 240×400 |
| LH570WX2-SH01 | LG Display | 5.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

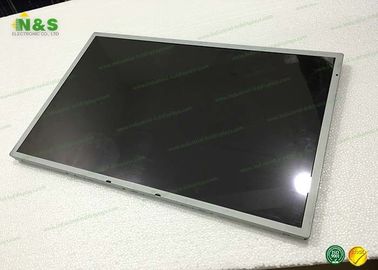

Picture of LM201W01-B5 LG Display
