8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm

8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm
8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm

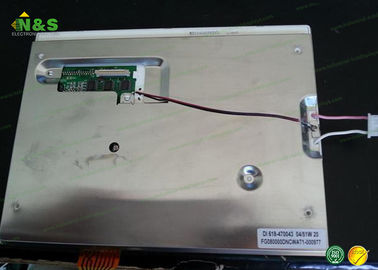

Large Image :  8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm

Product Details:
Place of Origin: KOREA
Brand Name: Data Image
Certification: ISO9001
Model Number: FG080000DNCWA-T1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

8.0 Inch FG080000DNCWA-T1 anti glare lcd screen Data Image 183×141×16.7 mm

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 8.0 Inch
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive
Active Area: 162.24×121.68 Mm Outline: 183×141×16.7 Mm
High Light:

tft lcd screen

,

tft lcd panel

8.0 inch FG080000DNCWA-T1 TFT LCD Module Data Image for Industrial Application panel



FG080000DNCWA-T1 Specification



Panel Size: 8.0 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0845×0.2535 mm (H×V)
Pixel Pitch : 0.2535×0.2535 mm (H×V)
Weight : 505g (Typ.)
Surface : Antiglare, Hard coating
Active Area : 162.24×121.68 mm (H×V)
Outline Dimension : 183×141 mm (H×V)
Outline Depth : 16.2±0.5 mm
Holes & Brackets : Rear mounting holes (4-Φ2.2)
Landscape or Portrait : Landscape type
Touch Panel : Embeded (8-wire Resistive)



FG080000DNCWA-T1  Specification



Display Mode: TN, Normally White, Transmissive
Brightness : 320 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/35 (Typ.)(Tr/Td)
Viewing Angle : 65/65/65/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.293; Wy:0.345
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N



FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.



We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2.Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3.Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4.After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
GM126401GFAYBGI2 Data Image 2.9" 128×64

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
