Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1600(RGB)×1200 , UXGA |
|---|---|---|---|
| Display Mode: | IPS, Normally Black, Transmissive | Active Area: | 408×306 Mm |
| Outline: | 432×331.5×25.5 Mm | Panel Size: | 20.1 Inch |
| High Light: | lg display panel,lg lcd display |
||

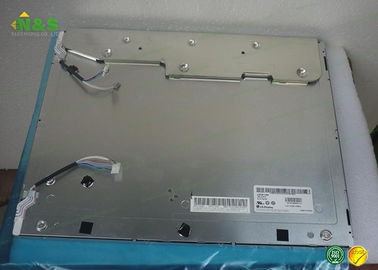

LM201U05-SLA3 LG LCD Panel LG Display 20.1 inch LCM for Desktop Monitor panel
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LM201U05-SLA3 Specification
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.20Kgs (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 432×331.5 mm (H×V) |
| Outline Depth : | 17.4/25.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| IPS, Normally Black, Transmissive | |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 7/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
