Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
---|---|---|---|
Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 53.28×71.04 Mm | Outline: | 64×85×5.5 Mm |
High Light: | tft lcd screen,tft lcd display module |

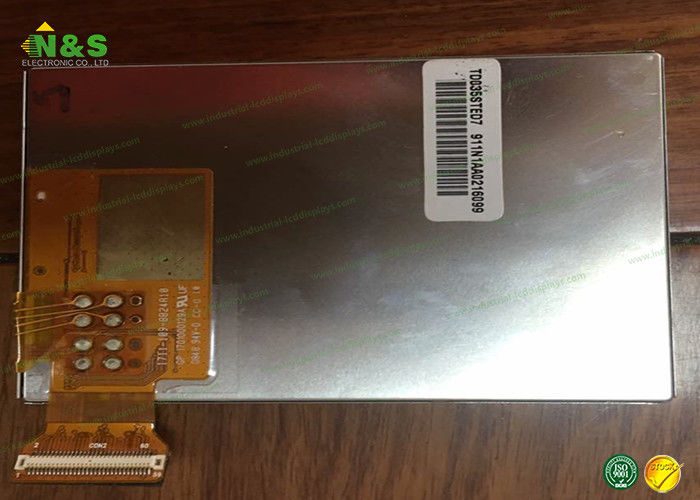

3.5 inch TD035STED7 TFT LCD Module TPO with Normally White 60Hz
TD035STED7 Information
Panel Size : | 3.5 inch |
Dot Resolution : | 240(RGB)×320 (QVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 114 PPI |
Aspect Ratio : | 3:4 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.074×0.222 mm (H×V) |
Pixel Pitch : | 0.222×0.222 mm (H×V) |
Weight : | 47g (Typ.) |
Active Area : | 53.28×71.04 mm (H×V) |
Outline Dimension : | 64×85 mm (H×V) |
Outline Depth : | 4.1/5.5 (Typ./Max.) mm |
Landscape or Portrait : | Portrait type |
Touch Panel : | Embeded (4-wire Resistive) |
Display Mode : | TN, Normally White, Transflective |
Brightness : | 115 cd/m² (Typ.) |
Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
Contrast Ratio : | 15:1 (Typ.) (Reflective) |
Display Color : | 262K (6-bit) |
Color Gamut : | 36% NTSC (CIE1931) |
Response Time : | 35 (Typ.)(Tr+Td) |
Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.310; Wy:0.330 |
White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
Reflectance Ratio : | 7/10% (Typ./Max.) |
Sunlight Readable : | Y |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TF018TUYG1 | TPO | 1.8" | 128×160 |
T026TVE001 | TPO | 2.6" | 240×320 |
9.9E+08 | TPO | 2.7" | 320×240 |
PS25TLCM | TPO | 2.5" | 320×240 |
TD028TGEA1 | TPO | 2.8" | 240×320 |
