Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 409.8×230.4 Mm | Outline: | 430.4×254.6×11.4 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

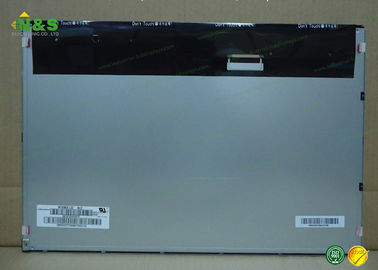

Normally White HM185WX1-400 TFT LCD Module BOE 18.5 inch LCM 1366×768
HM185WX1-400 Information
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.33Kgs (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.4×254.6 mm (H×V) |
| Outline Depth : | 10.9±0.5 mm |
| Holes & Brackets : | Optional (Side mounting holes (4-M3) on left, right bezel) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
