Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | ADS, Normally Black, Transmissive |
| Active Area: | 374.784×299.827 Mm | Outline: | 396×324×10.4 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

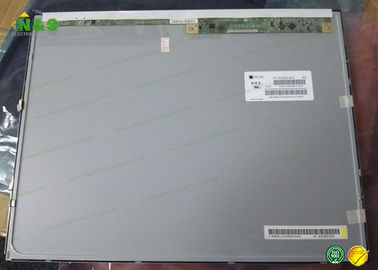

MV190E0M-N10 TFT LCD Module BOE 19.0 inch LCM 1280×1024 250 Normally Black
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
| BV050HDE-N47 | BOE | 5.0" | 720×1280 |
| BP096WX2-100 | BOE | 9.6" | 800×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
MV190E0M-N10 Information
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0976×0.2928 mm (H×V) |
| Pixel Pitch : | 0.2928×0.2928 mm (H×V) |
| Weight : | 1.72Kgs (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 374.784×299.827 mm (H×V) |
| Bezel Area : | 378.8×303.0 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 8.7/10.4 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | ADS, Normally Black, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
