Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 211.2×158.4 Mm | Outline: | 243×181.6×12.7 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

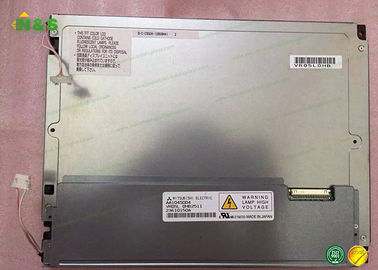

Normally White AA104SG01 TFT LCD Module Mitsubishi 10.4 inch LCM 800×600
AA104SG01 Information
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 570g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×181.6 mm (H×V) |
| Outline Depth : | 12.2±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | N |
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
