Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
---|---|---|---|
Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 170.4×127.8 Mm | Outline: | 199.5×149 Mm |
High Light: | tft lcd panel,tft lcd display module |

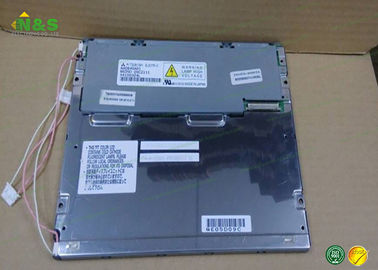

Normally White AA084SA01 TFT LCD Module Mitsubishi 8.4 inch LCM for Industrial Application panel
AA084SA01 Information
Panel Size : | 8.4 inch |
Dot Resolution : | 800(RGB)×600 (SVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 119 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.071×0.213 mm (H×V) |
Pixel Pitch : | 0.213×0.213 mm (H×V) |
Weight : | 380g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 170.4×127.8 mm (H×V) |
Bezel Area : | 174.9×132.2 mm (H×V) |
Outline Dimension : | 199.5×149 mm (H×V) |
Outline Depth : | 11.5 (Typ.) mm |
Holes & Brackets : | Face mounting holes (4-Φ3.4) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Gamut : | 40% NTSC (CIE1931) |
Response Time : | 4/12 (Typ.)(Tr/Td) |
Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.30 (Max.)(5 points) |
Sunlight Readable : | N |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
AA084VC08 | Mitsubishi | 8.4" | 640×480 |
AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
