Transmissive LCBHBT161M NAN YA LCD Panel 5.7 inch with 115.17×86.37 mm

Transmissive  LCBHBT161M	NAN YA  LCD Panel  	5.7 inch with  	115.17×86.37 mm
Transmissive  LCBHBT161M	NAN YA  LCD Panel  	5.7 inch with  	115.17×86.37 mm Transmissive  LCBHBT161M	NAN YA  LCD Panel  	5.7 inch with  	115.17×86.37 mm Transmissive  LCBHBT161M	NAN YA  LCD Panel  	5.7 inch with  	115.17×86.37 mm

Large Image :  Transmissive LCBHBT161M NAN YA LCD Panel 5.7 inch with 115.17×86.37 mm

Product Details:
Place of Origin: korea
Brand Name: NAN YA
Certification: ISO9001
Model Number: LCBHBT161M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Transmissive LCBHBT161M NAN YA LCD Panel 5.7 inch with 115.17×86.37 mm

Description
Panel Brand: NAN YA Panel Model: LCBHBT161M
Panel Type: CSTN-LCD , LCM Panel Size: 5.7 Inch
Resolution: 320(RGB)×240 , QVGA Display Mode: STN, Normally Black, Transmissive
High Light:

tft lcd screen

,

tft lcd panel

Transmissive LCBHBT161M NAN YA LCD Panel 5.7 inch with 115.17×86.37 mm

LCBHBT161M Detail

Panel Brand : NAN YA
Panel Model : LCBHBT161M
Panel Type : CSTN-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : STN, Normally Black, Transmissive
Active Area : 115.17×86.37 mm
Outline : 168×111 mm
Surface :
Brightness : 75 cd/m² (Typ.)
Contrast Ratio : 30:1 (Typ.)
Display Colors : Color
Response Time : 240/100 (Typ.)(Tr/Td)
Viewing Angle :
Frequency : 120Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel Data (8-bit) , 16 pins
Input Voltage : 5.0V (Typ.)



Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.



Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 280g
Active Area : 115.17×86.37 mm (H×V)
Bezel Area : 120.0×90.0 mm (H×V)
Outline Dimension : 168×111 mm (H×V)
Outline Depth : 7.4 mm
Holes & Brackets : Face mounting holes (2-R1.75, 2-Φ3.5)
Landscape or Portrait : Landscape type
Touch Panel : Without



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800
ED060SCT E Ink 6.0" 600×800
ET043OC1 E Ink 4.4" 360×640
EN133UT1 E Ink 13.3" 1600×1200
ED047TC1 E Ink 4.7" 540×960
ED133UT1 E Ink 13.3" 1600×1200
ES133UT1 E Ink 13.3" 1600×1200
ED060SCQ E Ink 6.0" 600×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

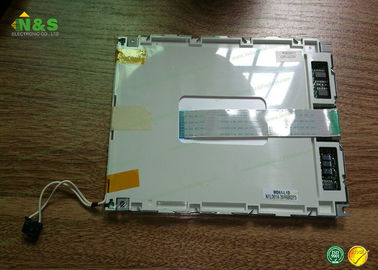

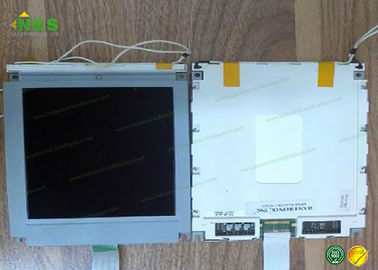

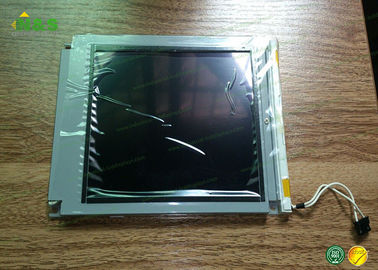

LCBHBT161M Picture

Transmissive  LCBHBT161M	NAN YA  LCD Panel  	5.7 inch with  	115.17×86.37 mm 0
