Product Details:
|
| Panel Brand: | LG Display | Panel Model: | LB104S04-TL02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | lg display panel,lg lcd display |
||
LG Display LB104S04-TL0210.4 inch with 224.5×172×7.1 mm Outline
LB104S04-TL02 Specification
| Panel Brand : | LG Display | |
| Panel Model : | LB104S04-TL02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 224.5×172×7.1 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 45% | |
| Response Time : | 4/6 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/55/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | WLED Embedded (LED Driver) | |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins | |
|
3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 302.5/317.0g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.2×161.8 mm (H×V) |
| Outline Dimension : | 224.5×172 mm (H×V) |
| Outline Depth : | 6.8±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

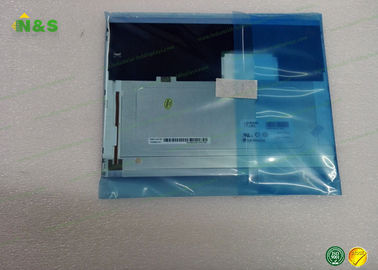

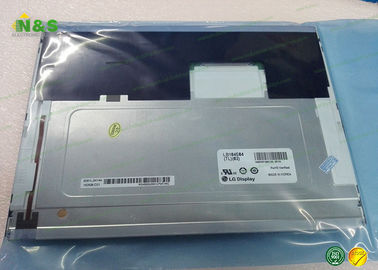

LB104S04-TL02 Picture
