Product Details:
|
| Panel Brand: | LG Display | Panel Model: | LB104S02-TD01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | lg display panel,lg replacement screen |
||
LB104S02-TD01 LG LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
LB104S02-TD01 Detail
| Panel Brand : | LG Display | |
| Panel Model : | LB104S02-TD01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 234.7×178.6 mm | |
| Surface : | Antiglare | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 400:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 6/19 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/55/50 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins | |
|
3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 420/450g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.5×161.0 mm (H×V) |
| Outline Dimension : | 234.7×178.6 mm (H×V) |
| Outline Depth : | 6.8±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

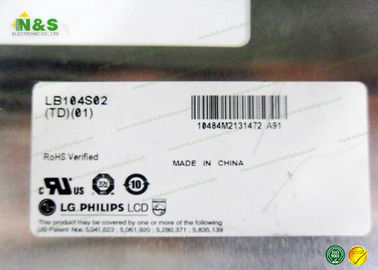

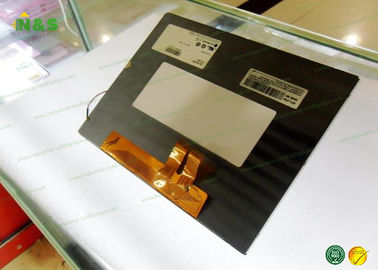

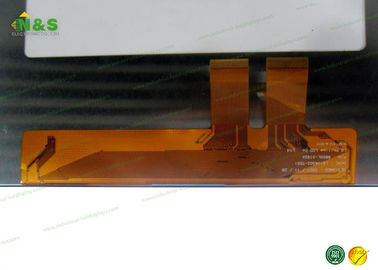

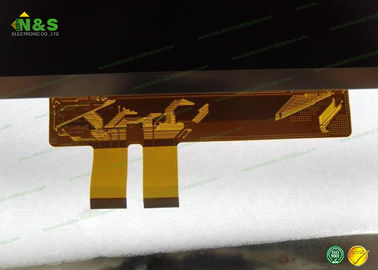

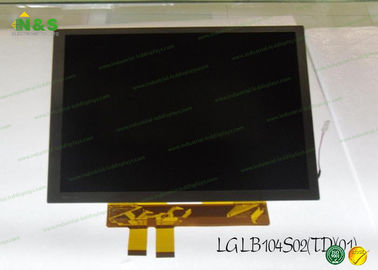

LB104S02-TD01 Picture
