Product Details:
|
| Panel Brand: | NEC | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 211.2×158.4 Mm |
| Outline: | 251×196×24 Mm | Display Colors: | Full Color , CIE1931 55% |
| High Light: | nec lcd touch screen,nec tft lcd |
||
211.2×158.4 mm NL6448AC33-15 NEC LCD Panel 10.4 inch Normally White
NL6448AC33-15 Detail
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 750g (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×161.4 mm (H×V) |
| Outline Dimension : | 251×196 mm (H×V) |
| Outline Depth : | 12.0/24.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantages
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Color Gamut : | 55% NTSC (CIE1931) |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 50/50/15/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |

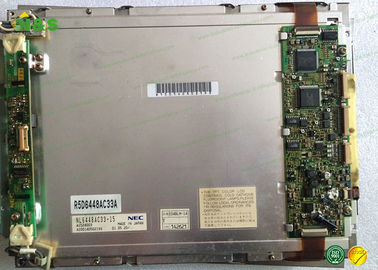

NL6448AC33-15 Picture
