Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 14.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 285.696×214.272 Mm | Outline: | 298.5×227.5 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

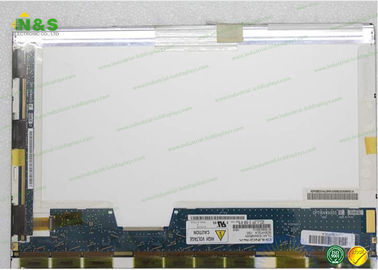

Normally White CLAA141XF01 TFT LCD Module CPT 14.1 inch LCM 1024×768
CLAA141XF01 Information
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 470g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 285.696×214.272 mm (H×V) |
| Outline Dimension : | 298.5×227.5 mm (H×V) |
| Outline Depth : | 5.2 (Typ.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 150 cd/m² (Typ.) |
| Contrast Ratio : | 200 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.301; Wy:0.332 |
| Sunlight Readable : | N |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
