Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.2 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 222.72×130.5 Mm | Outline: | 235×145.8×5.6 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

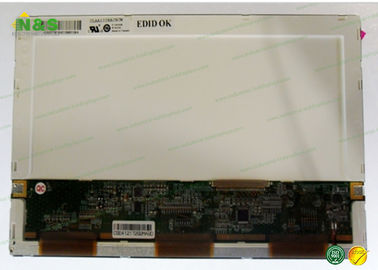

CLAA102NA0BCW TFT LCD Module CPT 10.2 inch LCM Normally White with 222.72×130.5 mm
CLAA102NA0BCW Information
| Panel Size : | 10.2 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 116 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) |
| Weight : | 250g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 222.72×130.5 mm (H×V) |
| Bezel Area : | 225.9×134.2 mm (H×V) |
| Outline Dimension : | 235×145.8 mm (H×V) |
| Outline Depth : | 5.3±0.3 mm |
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAN050LQ41 2XB | CPT | 5.0" | 540×960 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| CLAG045LA011 AXA | CPT | 4.5" | 480×854 |
