Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 222.72×125.28 Mm | Outline: | 235×143×5.2 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

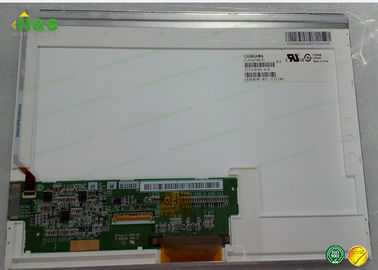

CLAA101NC05 TFT LCD Module CPT 10.1 inch LCM 1024×600 222.72×125.28 mm Active Area
CLAA101NC05 Specification
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 190g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 226.0×128.7 mm (H×V) |
| Outline Dimension : | 235×143 mm (H×V) |
| Outline Depth : | 5.2 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/40/15/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable : | N |
