Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | HFFS, Normally Black, Transmissive |
| Active Area: | 216.576×135.36 Mm | Outline: | 239.4×153×4.84 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

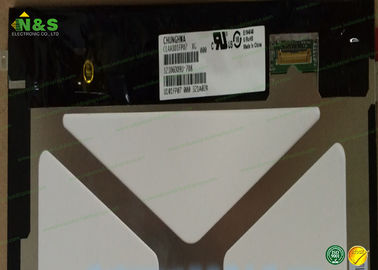

10.1 inch CLAA101FP07 TFT LCD Module CPT LCM 1920×1200 450 800:1 for Pad Tablet panel
CLAA101FP07 Specification
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 225 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0376×0.1128 mm (H×V) |
| Pixel Pitch : | 0.1128×0.1128 mm (H×V) |
| Weight : | 135g (Max.) |
| Surface : | Hard coating, Antireflection |
| Active Area : | 216.576×135.36 mm (H×V) |
| Outline Dimension : | 239.4×153 mm (H×V) |
| Outline Depth : | 2.5/4.84 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (6 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | HFFS, Normally Black, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.28 (Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
