Product Details:
|
| Contrast Ratio: | 1000:1 (Typ.) | Panel Size: | 28.0 Inch |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160 , UHD | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | V-by-One 8 Lane , 51 Pins |
| High Light: | tft lcd display,lcd display panel |
||
| Panel Size : | 28.0 inch |
| Dot Resolution : | 3840(RGB)×2160 (UHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 157 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0539×0.158 mm (H×V) |
| Pixel Pitch : | 0.1617×0.158 mm (H×V) |
| Weight : | 2.91/3.1Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 620.93×341.28 mm (H×V) |
| Bezel Area : | 626.93×347.28 mm (H×V) |
| Outline Dimension : | 648.9×369.3 mm (H×V) |
| Outline Depth : | 12.13/20.85 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
<
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 1.07B (10-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.42 (Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

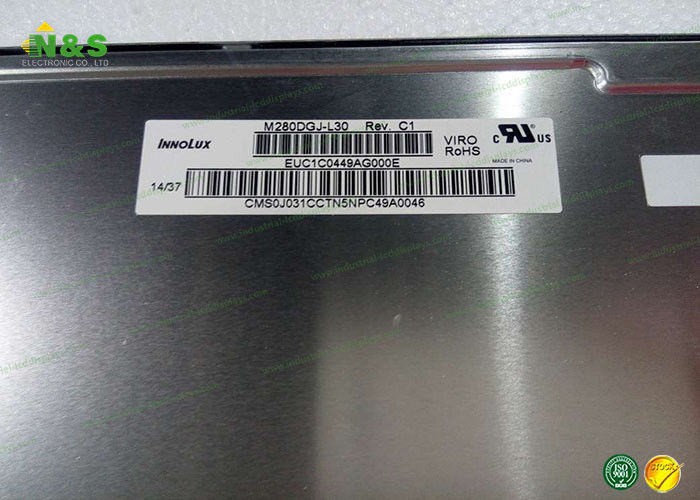

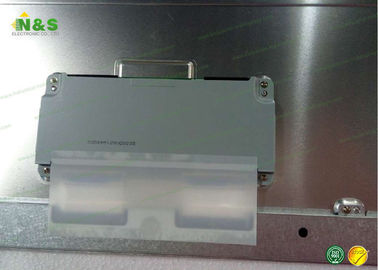

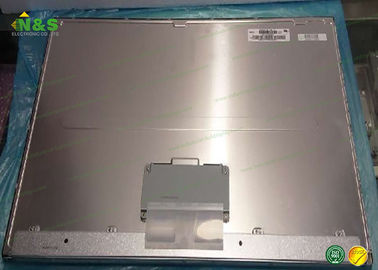

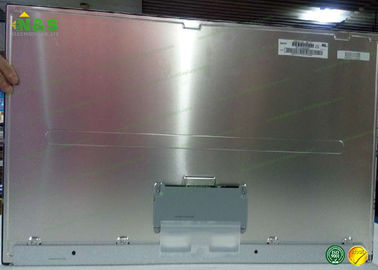

M280DGJ-L30 Picture
