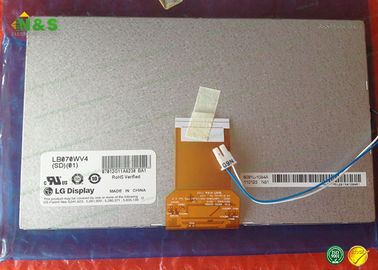

Product Details:
|
Surfaces: | Antiglare | Panel Size: | 7.0 Inch |
---|---|---|---|
Resolution: | 800×480(RGB) , WVGA | Display Mode: | S-IPS, Normally Black, Transmissive |
Frequency: | 60Hz | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 50 Pins |
High Light: | lg lcd display,lg replacement screen |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Panel Size :
7.0 inch | |
Dot Resolution : | 800×480(RGB) (WVGA) |
Pixel Configuration : | RGB Horizontal Stripe |
Pixel Density : | 134 PPI |
Aspect Ratio : | 15:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.1893×0.0629 mm (H×V) |
Pixel Pitch : | 0.1893×0.1887 mm (H×V) |
Weight : | TBD |
Surface : | Antiglare |
Active Area : | 151.44×90.576 mm (H×V) |
Bezel Area : | 153.84×92.98 mm (H×V) |
Outline Dimension : | 165×104.6 mm (H×V) |
Outline Depth : | 5.1±0.3 mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | S-IPS, Normally Black, Transmissive |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 30 (Typ.)(Tr+Td) |
Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | Symmetry |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
Sunlight Readable : | N |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LH350H04-SH01 | LG Display | 3.5" | 320×480 |
LH156J01-TH01 | LG Display | 1.6" | 160×96 |
LC470EUJ-FFK1 | LG Display | 47" | 1920×1080 |
LC500DUJ-FFE1 | LG Display | 50" | 1920×1080 |
LM215WF4-TJC1 | LG Display | 21.5" | 1920×1080 |
LM230WF3-SJD1 | LG Display | 23.0" | 1920×1080 |
LM230WF5-TJL3 | LG Display | 23.0" | 1920×1080 |
LM185WH2-TJBC | LG Display | 18.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
