Product Details:
|
| Panel Brand: | HannStar | Panel Model: | HSD080IFW1-A00 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd panel,tft lcd display module |
||
Normally White TFT LCD Module HSD080IFW1-A00 8.0 inch with 176.64×99.36 mm Active Area
HSD080IFW1-A00 Product Information
| Panel Brand : | HannStar |
| Panel Model : | HSD080IFW1-A00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 192.8×116.9×4.7 mm |
| Surface : | |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/75 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S13P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 40 pins |
| Input Voltage : | 3.3/11.0/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Panel Size : | 8.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 148 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0575×0.1656 mm (H×V) |
| Pixel Pitch : | 0.1725×0.1656 mm (H×V) |
| Weight : | 181g (Typ.) |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 180.1×103.4 mm (H×V) |
| Outline Dimension : | 192.8×116.9 mm (H×V) |
| Outline Depth : | 4.2/4.7 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| E499HAM1 | EDO | 5.0" | 720×1280 |
| M595HBU1 | EDO | 6.0" | 720×1280 |
| M499HBU1 | EDO | 5.0" | 720×1280 |
| E499HAA1 | EDO | 5.0" | 720×1280 |
| E555HAA1 | EDO | 5.5" | 720×1280 |
| E595HAA1 | EDO | 6.0" | 720×1280 |
| E1392AM1.A | EDO | 1.39" | 400×400 |
| E559FMM1 | EDO | 5.6" | 1080×1920 |

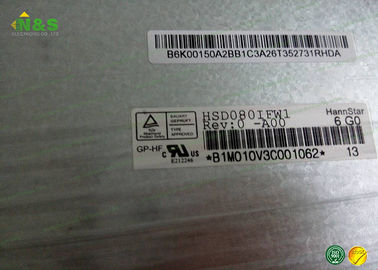

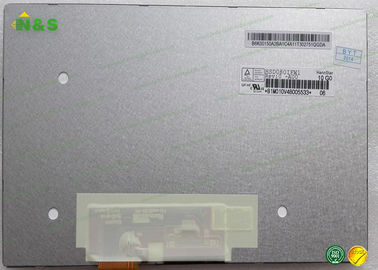

Picture of TFT LCD Module HSD080IFW1-A00
