Product Details:
|
Panel Brand: | HannStar | Panel Model: | HSD070PWW1-B01 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | HS-IPS, Normally Black, Transmissive |
High Light: | tft lcd screen,tft lcd display module |
HSD070PWW1-B01 HannStar LCD Panel 7.0 inch with 150.72×94.2 mm Active Area
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
HSD070PWW1-B01 Detail
Panel Brand : | HannStar |
Panel Model : | HSD070PWW1-B01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 7.0 inch |
Resolution : | 1280(RGB)×800 , WXGA |
Display Mode : | HS-IPS, Normally Black, Transmissive |
Active Area : | 150.72×94.2 mm |
Outline : | 161.2×105.5×4.5 mm |
Surface : | Hard coating |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 800:1 (Typ.) |
Display Colors : | 262K (6-bit) , CIE1931 50% |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Embedded (LED Driver) |
Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
Panel Size : | 7.0 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 215 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.03925×0.11775 mm (H×V) |
Pixel Pitch : | 0.11775×0.11775 mm (H×V) |
Weight : | 90/93g (Typ./Max.) |
Surface : | Hard coating |
Active Area : | 150.72×94.2 mm (H×V) |
Outline Dimension : | 161.2×105.5 mm (H×V) |
Outline Depth : | 2.35/4.5 (Typ./Max.) mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |

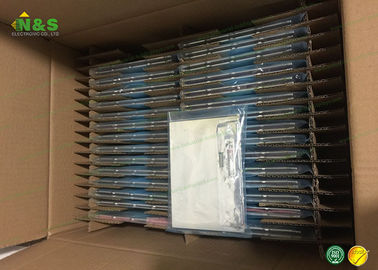

HSD070PWW1-B01 Picture
