Product Details:
|
| Panel Brand: | HannStar | Panel Model: | HSD070IFW1-A00 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
7.0 inch HSD070IFW1-A00 HannStar LCD Panel Normally White with 153.6×86.64 mm
HSD070IFW1-A00 Specification
| Panel Brand : | HannStar |
| Panel Model : | HSD070IFW1-A00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 153.6×86.64 mm |
| Outline : | 164.9×100×7.3 mm |
| Surface : | Antiglare |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/9.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 170 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.1444 mm (H×V) |
| Pixel Pitch : | 0.150×0.1444 mm (H×V) |
| Weight : | 146/156g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 153.6×86.64 mm (H×V) |
| Bezel Area : | 156.0×90.1 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7/7.3 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |

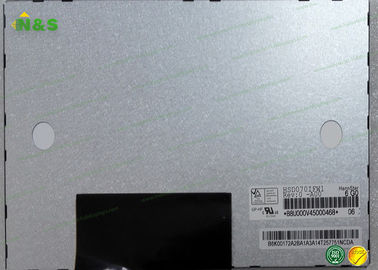

HSD070IFW1-A00 Picture
