Product Details:
|
| Panel Brand: | Data Image | Panel Model: | FG050720DSSWDG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.7 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
Transmissive FG050720DSSWDG01 Data Image LCD Panel 5.7 inch with 115.2×86.4 mm
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FG050720DSSWDG01 Detail
| Panel Brand : | Data Image | |
| Panel Model : | FG050720DSSWDG01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 5.7 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 115.2×86.4 mm | |
| Outline : | 127.4×98.43 mm | |
| Surface : | Clear | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 300:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 48% | |
| Response Time : | 15/35 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/60/40 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
|
WLED Embedded (LED Driver) | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 5.7 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 141 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.060×0.180 mm (H×V) | |
| Pixel Pitch : | 0.180×0.180 mm (H×V) | |
| Weight : | 110g (Typ.) | |
| Surface : | Clear | |
| Active Area : | 115.2×86.4 mm (H×V) | |
| Bezel Area : | 118.16×89.12 mm (H×V) | |
| Outline Dimension : | 127.4×98.43 mm (H×V) | |
| Outline Depth : | 7.0 (Max.) mm | |
| Landscape or Portrait : | Landscape type | |
|
Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| GM126401GFAYBGI2 | Data Image | 2.9" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

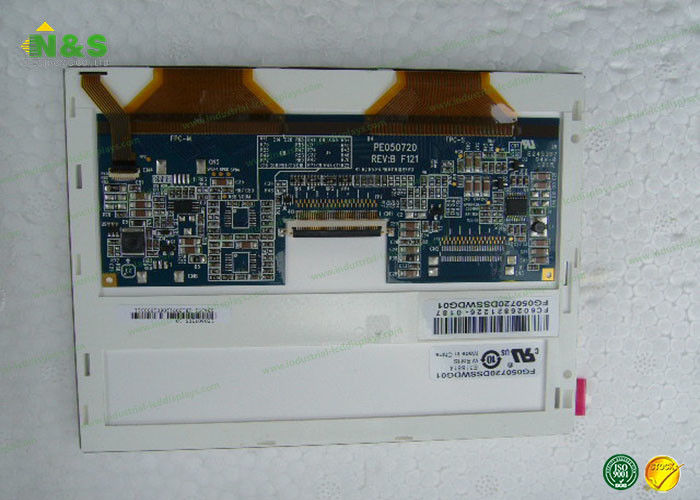

FG050720DSSWDG01 Picture
