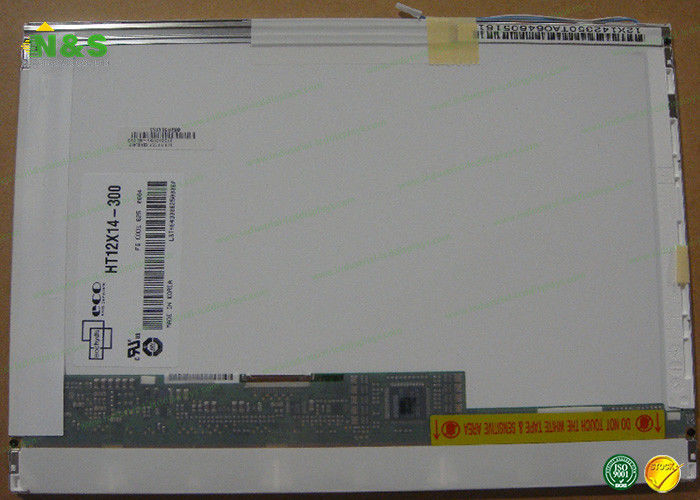

Product Details:
|
| Contrast Ratio: | 300:1 (Typ.) | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 280/290g (Typ.Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.9×188.0 mm (H×V) |
| Outline Dimension : | 261×199 mm (H×V) |
| Outline Depth : | 4.7±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.315; Wy:0.332 |
| White Variation : | 1.17/1.25 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HTT22QC2-S01 | HYDIS | 2.2" | 176×220 |
| HV121X02-101 | HYDIS | 12.1" | 1024×768 |
| HX104X03-101 | HYDIS | 10.4" | 1024×768 |
| HVT35HV1-DE0 | HYDIS | 3.5" | 320×480 |
| HVA40WV2-D02 | HYDIS | 4.0" | 480×800 |
| HVA35WV1-D03 | HYDIS | 3.5" | 480×800 |
| HVA35WV1-D02 | HYDIS | 3.5" | 480×800 |
| HV070WS1-D01 | HYDIS | 7.0" | 1024×600 |
| HX104X02-101 | HYDIS | 10.4" | 1024×768 |
| HVT31HV1-D00 | HYDIS | 3.1" | 320×480 |
| HVA43WV1-D01 | HYDIS | 4.3" | 480×800 |
