Product Details:
|
Contrast Ratio: | 800:1 (Typ.) | Panel Size: | 7.0 Inch |
---|---|---|---|
Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
Display Colors: | 16.2M (6-bit + FRC) , CIE1931 50% | Signal Interface: | LVDS (1 Ch, 8-bit) , 31 Pins |
High Light: | industrial touch screen display,industrial lcd screen |

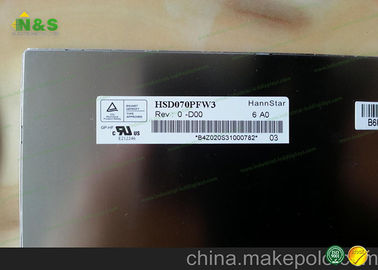

HSD070PFW3-D00 HannStar 7.0 inch Normally White with 167.25×104.65×3 mm
Panel Size : | 7.0 inch |
Dot Resolution : | 1024(RGB)×600 (WSVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 169 PPI |
Aspect Ratio : | 17:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.050×0.150 mm (H×V) |
Pixel Pitch : | 0.150×0.150 mm (H×V) |
Weight : | 95/100g (Typ./Max.) |
Active Area : | 153.6×90 mm (H×V) |
Bezel Area : | 157.1×93.4 mm (H×V) |
Outline Dimension : | 167.25×104.65 mm (H×V) |
Outline Depth : | 2.8±0.2 mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 16.2M (6-bit + FRC) |
Color Gamut : | 50% NTSC (CIE1931) |
Response Time : | 4/12 (Typ.)(Tr/Td) |
Viewing Angle : | 80/70/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 9 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.39 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
