Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Surface: | Antiglare, Hard Coating (3H) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 50% | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 60 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||

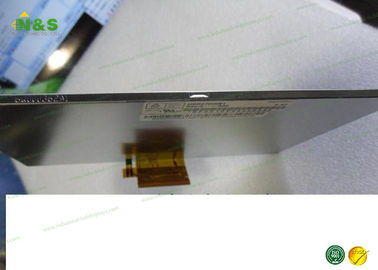

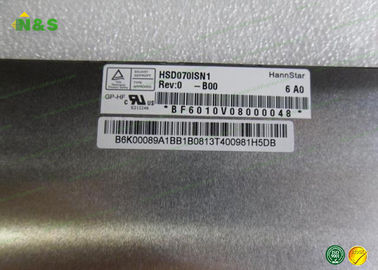

7.0 inch HSD070ISN1-B00 HannStar for Flat, LCM Hot Model for Digital photo Frame
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 143 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.059×0.177 mm (H×V) |
| Pixel Pitch : | 0.177×0.177 mm (H×V) |
| Weight : | 120g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 141.6×106.2 mm (H×V) |
| Bezel Area : | 144.9×109.4 mm (H×V) |
| Outline Dimension : | 156.4×122.25 mm (H×V) |
| Outline Depth : | 3.2 (Typ.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HSD070ISN1-B00 Information
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 2.4/5.6 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/70/75/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 3 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
