Product Details:
|
| Panel Brand: | Innolux | Panel Model: | EJ101IA-02A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 216.96×135.6 Mm | Outline: | 226.33×157.3×3.14 Mm |
| Contrast Ratio: | 1000:1 (Typ.) | Brightness: | 400 Cd/m² (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

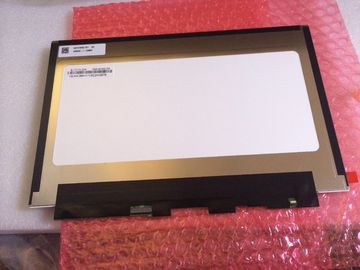

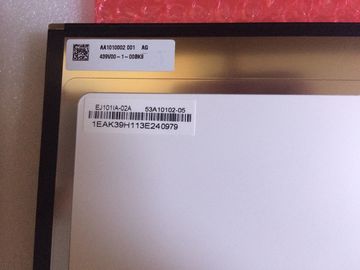

EJ101IA-02A 10.1 inch lcd display module 216.96×135.6 mm Normally Black
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 135±10g |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 226.33×157.3 mm (H×V) |
| Outline Depth : | 2.35/3.14 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V546HK3-PS5 Rev.C1 | Innolux | 55" | 1920×1080 |
| V216B1-PN1 | Innolux | 21.6" | 1366×768 |
| M190A1-P01 | Innolux | 19.0" | 1440×900 |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
EJ101IA-02A Information
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25 (Typ.)(13 points) |
| Sunlight Readable : |
N |
