Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
Hard coating LT070AA32900 tablet lcd panel 7.0 inch 152.4×91.44 mm
LT070AA32900
| Panel Size : | 7.0 inch | ||||||||
| Dot Resolution : | 800(RGB)×480 (WVGA) | ||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||
| Pixel Density : | 133 PPI | ||||||||
| Aspect Ratio : | 15:9 (H:V) | ||||||||
| Form Factor : | Flat Rectangle Display | ||||||||
| Dot Pitch : |
| ||||||||
| Pixel Pitch : |
| ||||||||
| Surface : | Hard coating (3H) | ||||||||
| Active Area : | 152.4×91.44 mm (H×V) | ||||||||
| 155.24×94.24 mm (H×V) | ||||||||
| Outline Dimension : | 170.8×110 mm (H×V) | ||||||||
| Outline Depth : | 10.9 (Max.) mm | ||||||||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | ||||||||
|
| ||||||||
| Touch Panel : |
| ||||||||
| Display Mode : | TN, Normally White, Transmissive | ||||||||
| Brightness : | 360 cd/m² (Typ.) | ||||||||
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) | ||||||||
| Display Color : | 262K (6-bit) | ||||||||
| Response Time : | 11/22 (Typ.)(Tr/Td) | ||||||||
| Viewing Angle : |
| ||||||||
| Viewing Direction : | 6 o'clock | ||||||||
| White color Chromaticity : | Wx:0.320; Wy:0.340 | ||||||||
|
|
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |

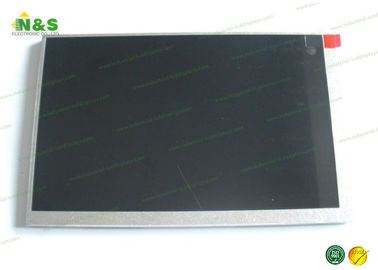

LT070AA32900 Picture
