Product Details:
|
| Panel Brand: | CPT | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Panel Size: | 15.0 Inch | Resolution: | 1024(RGB)×768 , XGA |
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 304.1×228.1 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

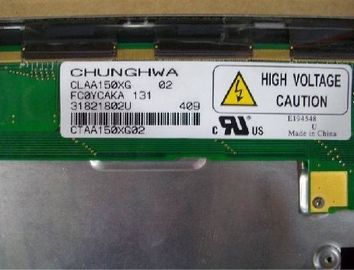

CLAA150XG02 Industrial LCD Displays 15.0 inch with 304.1×228.1 mm Active Area
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.10Kgs |
| Surface : | Antiglare |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.8×231.8 mm (H×V) |
| Outline Dimension : | 326×252 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 8/22 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
