Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
---|---|---|---|
Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 152.4×91.44 Mm | Outline: | 165×104×7.55 Mm |
High Light: | tft lcd panel,tft lcd display module |

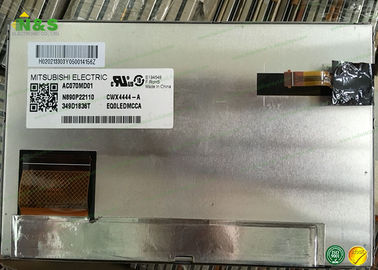

7.0 inch AC070MD01 TFT LCD Module Mitsubishi 800×480 with 152.4×91.44 mm Active Area
AC070MD01 Information
Panel Size : | 7.0 inch |
Dot Resolution : | 800(RGB)×480 (WVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 133 PPI |
Aspect Ratio : | 15:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0635×0.1905 mm (H×V) |
Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
Surface : | Antiglare, Reflection 4.0% (Typ.) |
Active Area : | 152.4×91.44 mm (H×V) |
Bezel Area : | 154.41×93.44 mm (H×V) |
Outline Dimension : | 165×104 mm (H×V) |
Outline Depth : | 6.8/7.55 (Typ./Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 600 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Color Gamut : | 50% NTSC (CIE1931) |
Response Time : | 40 (Max.)(Tr+Td) |
Viewing Angle : | 55/55/60/30 (Min.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 12 o'clock |
White color Chromaticity : | Wx:0.318; Wy:0.318 |
White Variation : | 1.25 (Max.)(9 points) |
Sunlight Readable : | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
AA150QB01 | Mitsubishi | 15.0" | 1280×960 |
AA150QA02 | Mitsubishi | 15.0" | 1280×960 |
AA150QA01 | Mitsubishi | 15.0" | 1280×960 |
AA142XE02 | Mitsubishi | 14.2" | 1024×768 |
AA142XE01 | Mitsubishi | 14.2" | 1024×768 |
AA142XD11 | Mitsubishi | 14.2" | 1024×768 |
AA142XC11 | Mitsubishi | 14.2" | 1024×768 |
