Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
---|---|---|---|
Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 245.76×184.32 Mm | Outline: | 275×199×12.5 Mm |
High Light: | tft lcd screen,tft lcd display module |

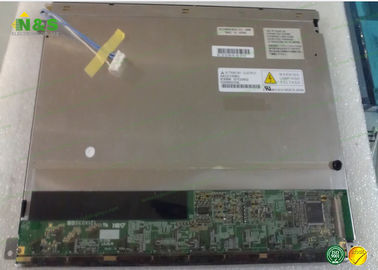

12.1 inch AA121XH01 TFT LCD Module Mitsubishi Normally White for Industrial Appication panel
AA121XH01 Information
Panel Size : | 12.1 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 105 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.080×0.240 mm (H×V) |
Pixel Pitch : | 0.240×0.240 mm (H×V) |
Weight : | 720g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 245.76×184.32 mm (H×V) |
Bezel Area : | 249.0×187.5 mm (H×V) |
Outline Dimension : | 280×210 mm (H×V) |
Outline Depth : | 12.0 (Typ.) mm |
Holes & Brackets : | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 320 cd/m² (Typ.) |
Contrast Ratio : | 550 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 6/19 (Typ.)(Tr/Td) |
Viewing Angle : | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.322; Wy:0.338 |
White Variation : | 1.30 (Max.)(5 points) |
Sunlight Readable : | N |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
AA121SK01 | Mitsubishi | 12.1" | 800×600 |
AA121SJ23A | Mitsubishi | 12.1" | 800×600 |
AA121SJ23 | Mitsubishi | 12.1" | 800×600 |
AA121SJ22 | Mitsubishi | 12.1" | 800×600 |
AA121SJ11 | Mitsubishi | 12.1" | 800×600 |
AA121SJ03 | Mitsubishi | 12.1" | 800×600 |
AA121SJ02 | Mitsubishi | 12.1" | 800×600 |
