Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 245.76×184.32 Mm | Outline: | 275×199×12.5 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

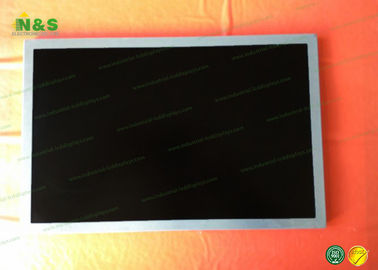

AA121XF01 TFT LCD Module Mitsubishi 12.1 inch with 245.76×184.32 mm Active Area
AA121XF01 Information
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 390g (Typ.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 250.0×188.7 mm (H×V) |
| Outline Dimension : | 275×199 mm (H×V) |
| Outline Depth : | 12.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 150 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.330 |
| Sunlight Readable : | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA121SK01 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ23A | Mitsubishi | 12.1" | 800×600 |
| AA121SJ23 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ22 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ11 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ03 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ02 | Mitsubishi | 12.1" | 800×600 |
| AA121SJ01 | Mitsubishi | 12.1" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
