Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 196.8×118.08 Mm | Outline: | 225×142.2×17.5 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

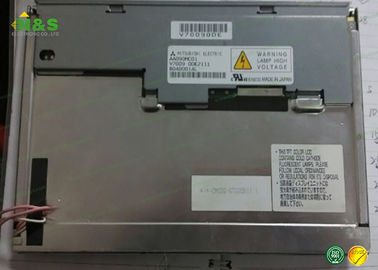

Normally White 9.0 inch AA090MC01--G1 TFT LCD Module with 196.8×118.08 mm Active Area
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Quality Control:
1. Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2. Function Inspection
Make sure all functions are 100% tested ok
AA090MC01--G1 Information
| Panel Size : | 9.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 730g (Typ.) |
| Surface : | Hard coating (6H), Antireflection |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 199.4×120.7 mm (H×V) |
| Outline Dimension : | 225×142.2 mm (H×V) |
| Outline Depth : | 14.6/17.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Withou |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA121XJ03-G1 | Mitsubishi | 12.1" | 1024×768 |
| AA121XJ03 | Mitsubishi | 12.1" | 1024×768 |
| AA121XG02 | Mitsubishi | 12.1" | 1024×768 |
| AA121XG01 | Mitsubishi | 12.1" | 1024×768 |
| AA121TA01--G1 | Mitsubishi | 12.1" | 1280×800 |
| AA121SK05 | Mitsubishi | 12.1" | 800×600 |
| AA121SK04 | Mitsubishi | 12.1" | 800×600 |
