Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.4×127.8 Mm | Outline: | 199.5×149×12 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

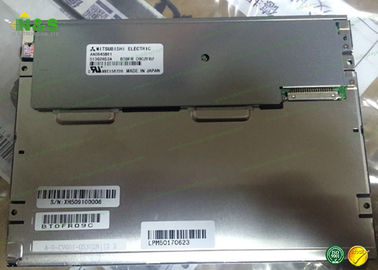

AA084SB11 TFT LCD Module Mitsubishi 8.4 inch LCM 800×600 with170.4×127.8 mm
AA084SB11 Information
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 365g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 174.9×132.2 mm (H×V) |
| Outline Dimension : | 199.5×149 mm (H×V) |
| Outline Depth : | 11.5 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4), Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 1200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 8-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | Y |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA104VJ02--T1 | Mitsubishi | 10.4" | 640×480 |
| AA084XB11--T2 | Mitsubishi | 8.4" | 1024×768 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
