Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 132.48×99.36 Mm | Outline: | 154×121 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

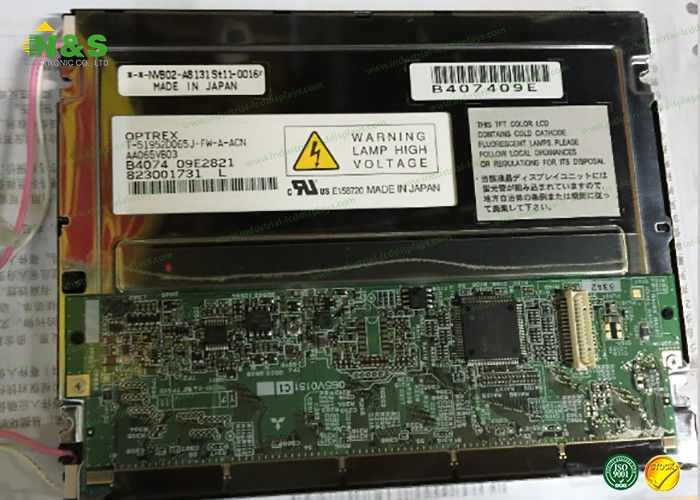

Mitsubishi AA065VB03 TFT LCD Screen , electronic lcd panel module
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
AA065VB03 Information
| Panel Size : | 6.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 205g (Typ.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 135.5×102.4 mm (H×V) |
| Outline Dimension : | 154×121 mm (H×V) |
| Outline Depth : | 11.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs); Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 750 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.322; Wy:0.338 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
| AA084XE11-DA-02 | Mitsubishi | 8.4" | 1024×768 |
| AA084XE11-DA-01 | Mitsubishi | 8.4" | 1024×768 |
