Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | AHVA, Normally Black, Transmissive |
| Active Area: | 115.2×86.4 Mm | Outline: | 135×104.8×9.35 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

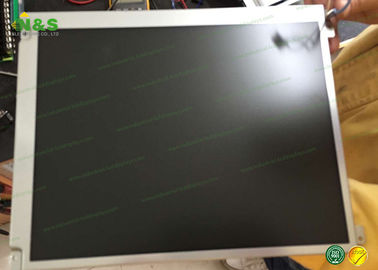

Normally White 5.7 inch AA057VD01 TFT LCD Module Mitsubishi 640×480 200 for Industrial Application panel
AA057VD01 Information
| Panel Size : | 5.7 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 160g (Typ.) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.8×91.0 mm (H×V) |
| Outline Dimension : | 135×104.8 mm (H×V) |
| Outline Depth : | 8.85±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/45/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.360 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
| D150X-N02 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
