Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 165×104×5.7MM |
| High Light: | auo display panel,auo lcd screen |
||

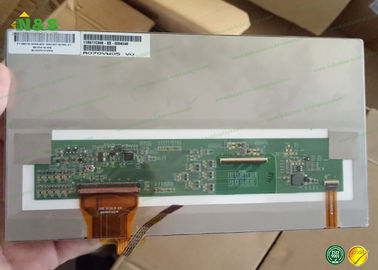

7.0 inch A070VW05 V0 800×480 AUO lcd screen replacement with 152.4×91.44 mm
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
A070VW05 V0 Information
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 133 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 152.4×91.44 mm (H×V) | |
| Bezel Area : | 154.4×93.44 mm (H×V) | |
| Outline Dimension : | 165×104 mm (H×V) | |
| Outline Depth : | 4.07/5.77 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| Display Mode : |
|
|
| Brightness : | 375 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 12/18 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/45/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
