Product Details:
|
Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 19.5 Inch |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Operating Temperature: | 0 ~ 50 °C |
Storage Temperature: | -20 ~ 60 °C | Brightness: | 200 Cd/m² (Typ.) |
Resolution: | 1600(RGB)×900 , HD+ | Weight: | 1.58/1.65Kgs (Typ./Max.) |
High Light: | tft lcd display,lcd display panel |

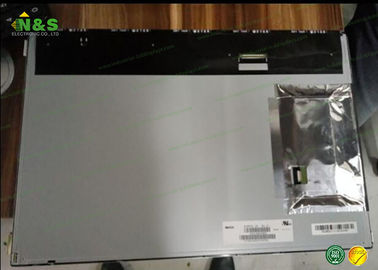

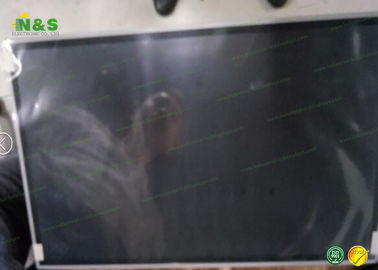

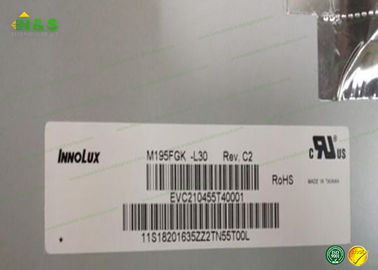

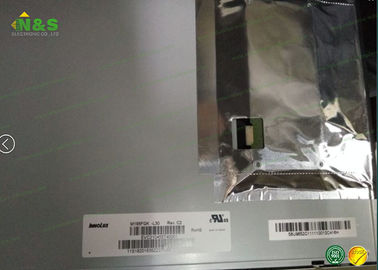

19.5 inch Innolux LCD Panel M195FGK-L30 a-Si tft lcd display 1600*900
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
Product details:
Panel Size : 19.5 inch
Dot Resolution : 1600(RGB)×900 (HD+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 94 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09×0.2664 mm (H×V)
Pixel Pitch : 0.27×0.2664 mm (H×V)
Weight : 1.58/1.65Kgs (Typ./Max.)
Surface : Hard coating (6H)
Active Area : 432×239.76 mm (H×V)
Bezel Area : 448.3×256.06 mm (H×V)
Outline Dimension : 458×265.6 mm (H×V)
Outline Depth : 8.4/13.6 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on up, down bezel
Landscape or Portrait : Landscape type
Touch Panel : Embeded (Projected Capacitive Touch)
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.33 (Max.)(9 points) |
INNOLUX M195FGK-L30 General Features
Panel Brand : | INNOLUX |
Panel Model : | M195FGK-L30 |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 19.5 inch |
Resolution : | 1600(RGB)×900 , HD+ |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 432×239.76 mm |
Outline : | 458×265.6×13.6 mm |
Surface : | Hard coating (6H) |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 1000:1 (Typ.) |
Display Colors : | 16.7M (6-bit + Hi-FRC) |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Without Driver |
Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
Input Voltage : | 5.0V (Typ.) |
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
