Product Details:
|
| Operating Temperature: | 0 ~ 50 °C | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60 °C | Resolution: | 1440(RGB)×900 , WXGA+ |
| Outline Depth: | 10.5±0.5 Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Dot Pitch: | 0.0945×0.2835 Mm (H×V) | Pixel Pitch: | 0.2835×0.2835 Mm (H×V) |
| High Light: | tft lcd display,lcd display panel |
||
M190CGE-L20 Innolux LCD Panel 1440*900 TN , Normally White , Transmissive
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
Basic Info:
Panel Brand : CHIMEI INNOLUX
Panel Model : M190CGE-L20
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1440(RGB)×900 , WXGA+
Display Mode : TN, Normally White, Transmissive
Active Area : 408.24×255.15 mm
Outline : 428×278×11 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 9S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Mechanical Features
Panel Size : 19.0 inch
Dot Resolution : 1440(RGB)×900 (WXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 89 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0945×0.2835 mm (H×V)
Pixel Pitch : 0.2835×0.2835 mm (H×V)
Weight : 1.57±0.07Kgs
MORE DETAILS :
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sample Charge:
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.
About N&S Electronics In the LCD Screen area:
N&S Electronic Co., Ltd is a professional enterprise specialized in LCD panels since 2010.
We can provide you with LCD module/panel/screen/glass, matching driver board, touch panel and diode, the big related supply lines.
LCD modules come from LCD original factory.
Quality Grade: A grade, New, Original
LCD Panel sizes contained but not limited to as follow: 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
LCD Panel brands contained but not limited to as follow: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |

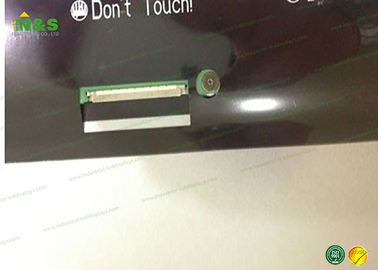

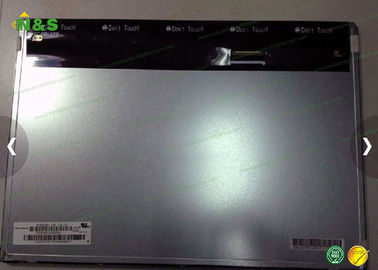

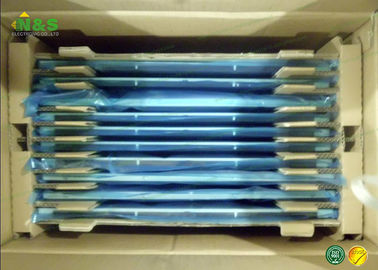

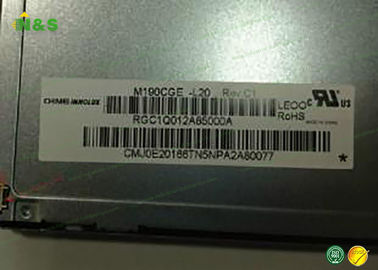

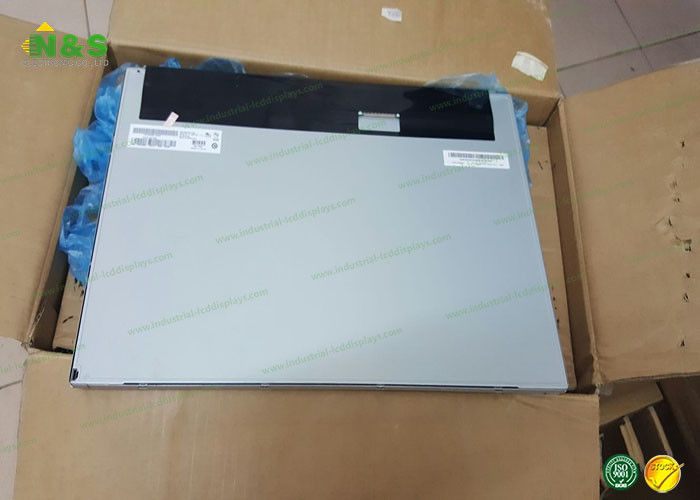

M190CGE-L20 Picture
