Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) | Response Time: | 1.5/3.5 (Typ.)(Tr/Td) |
| Contrast Ratio: | 700:1 (Typ.) | Active Area: | 409.8×230.4 Mm (H×V) |
| Outline Depth: | 11.0 (Max.) Mm | Brightness: | 200 Cd/m² (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

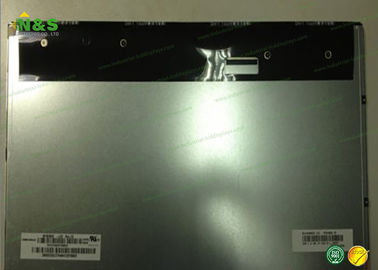

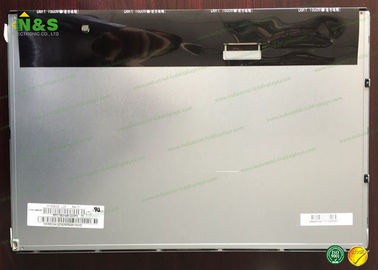

18.5 inch Originsl professional lcd display M185BGE - L23 high brightness 1366*768
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Advantages of N&S For the TFT LCD Screen:
Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.

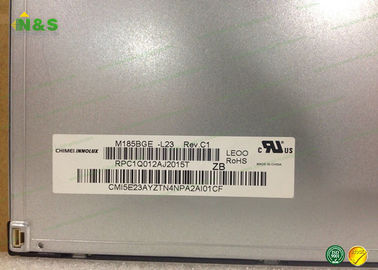

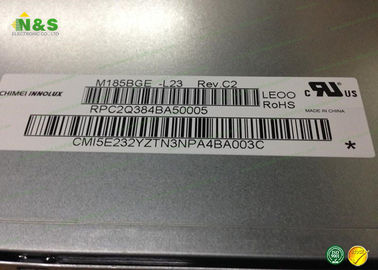

CHIMEI INNOLUX M185BGE-L23 General Features
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M185BGE-L23 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.37×254.6×11 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 8S4P WLED Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
CHIMEI INNOLUX M185BGE-L23 Mechanical Features
Panel Size : 18.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 84 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.100×0.300 mm (H×V)
Pixel Pitch : 0.300×0.300 mm (H×V)
Weight : 1.45/1.5Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 409.8×230.4 mm (H×V)
Bezel Area : 413.4×234.0 mm (H×V)
Outline Dimension : 430.37×254.6 mm (H×V)
Outline Depth : 11.0 (Max.) mm
Holes & Brackets : Side mounting holes (2-M3) on left bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
CHIMEI INNOLUX M185BGE-L23 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
Our services:
We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |
| F0352A-01U | Innolux | 3.5" | 320×480 |
| F07020-01D | Innolux | 7.0" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
