Product Details:
|
| Outline Dimension: | 47.28×76.4 Mm (H×V) | Weight: | 18.25g |
|---|---|---|---|
| Pixel Pitch: | 0.162×0.162 Mm (H×V) | Surface: | Clear, Hard Coating (3H) |
| Resolution: | 240(RGB)×400 (WQVGA) | Frequency: | 60Hz |
| Panel Size: | 3.0 Inch | Signal Interface: | CPU/RGB/SPI , 45 Pins |
| High Light: | black and white lcd display,lcd display white screen |
||

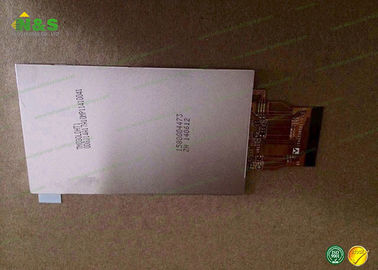

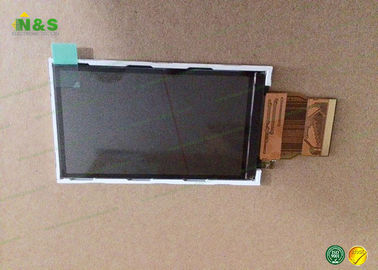

3.0 inch TM030LDHT1 Tianma LCD Displays ECB , Normally White , Transflective for 240*400
General Features
Panel Brand : TIANMA
Panel Model : TM030LDHT1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.0 inch
Resolution : 240(RGB)×400 , WQVGA
Display Mode : ECB, Normally White, Transflective
Active Area : 38.88×64.8 mm
Outline : 47.28×76.4 mm
Surface : Clear, Hard coating (3H)
Brightness : 130 cd/m² (Typ.)
More details :
| ontrast Ratio : | 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 65K/262K , CIE1931 34% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4S1P WLED Without Driver |
| Signal Interface : | CPU/RGB/SPI , 45 pins |
| Input Voltage : | 2.8/2.8V (Typ.)(IOVCC/VCC) |
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.
TIANMA TM030LDHT1 Mechanical Features
Panel Size : 3.0 inch
Dot Resolution : 240(RGB)×400 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 156 PPI
Aspect Ratio : 3:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.054×0.162 mm (H×V)
Pixel Pitch : 0.162×0.162 mm (H×V)
Weight : 18.25g
Surface : Clear, Hard coating (3H)
Active Area : 38.88×64.8 mm (H×V)
Bezel Area : 39.88×65.8 mm (H×V)
Outline Dimension : 47.28×76.4 mm (H×V)
Outline Depth : 2.4 mm
Landscape or Portrait : Portrait type
Touch Panel : Without
3.0", 240×400, CPU/RGB/SPI, Transflective, 2D, WLED, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| TM030LDHT1 | 3.0" | Panel | 240×400 | 130 | 100:01:00 | WLED | 65K/262K |
| LQ030B7UB02 | 3.0" | Panel | 240×400 | 150 | 100:01:00 | WLED | 65K/262K |
| TM030LBHT1 | 3.0" | Panel | 240×400 | 130 | 100:01:00 | WLED | 262K |
| LQ030B7UB01 | 3.0" | Panel | 240×400 | 150 | 100:01:00 | WLED | 65K/262K |
| T-55149GD030J-MLW-AJN | 3.0" | Panel | 240×400 | 400 | 105:01:00 | WLED | 65K/262K |
| T-55149GD030J-MLW-ALN | 3.0" | Panel | 240×400 | 360 | 105:01:00 | WLED | 65K/262K |
| T-55149GD030J-MLW-AMN | 3.0" | Panel | 240×400 | 360 | 105:01:00 | WLED | 262K |
| T-55149GD030J-MLW-AQN | 3.0" | Panel | 240×400 | 400 | 25:01:00 | WLED | 262K |
| T-55149GD030J-MLW-ARN | 3.0" | Panel | 240×400 | 430 | 50:01:00 | WLED | 65K/262K |
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
