Product Details:
|
| Dot Resolution: | 800(RGB)×600 , SVGA | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Contrast Ratio: | 100:1 (Min.) | Brightness: | 70 Cd/m² (Typ.) |
| Pixel Density: | 82PPI | Display Mode: | TN, Normally White, Transmissive |
| Pixel Configuration: | RGB Vertical Stripe | Form Factor: | Flat Rectangle Display |
| High Light: | industrial lcd screen,industrial lcd panel |
||

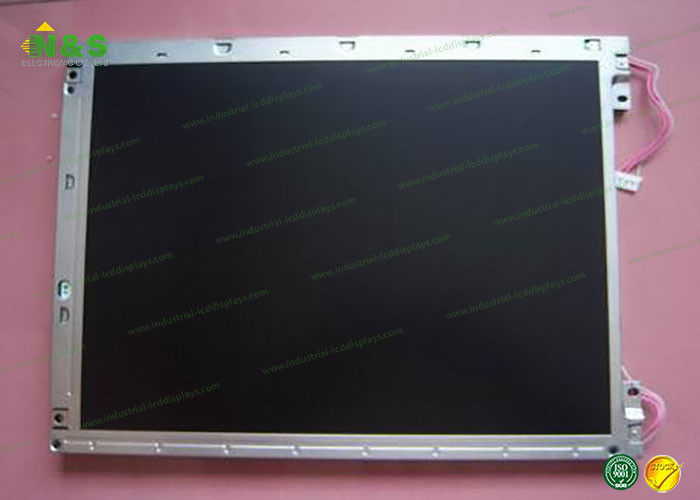

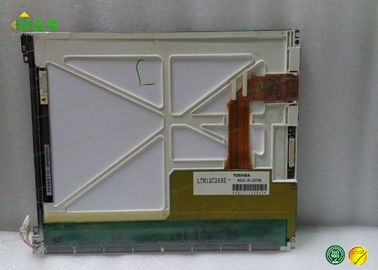

TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
Mechanical Features
Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Surface : Antiglare, Hard coating (3H)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 275×195 mm (H×V)
Outline Depth : 7.5 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
TOSHIBA LTM12C268E Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.330; Wy:0.350 |
| White Variation : | 1.81 (Max.) |
TOSHIBA LTM12C268E General Features
| Panel Brand : | TOSHIBA |
| Panel Model : | LTM12C268E |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 275×195×7.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3V (Typ.) |
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT065AC57400 | TOSHIBA | 6.5" | 640×480 |
| LT065AC57000 | TOSHIBA | 6.5" | 640×480 |
| LT057AC47200 | TOSHIBA | 5.7" | 640×480 |
| LT057AC47100 | TOSHIBA | 5.7" | 640×480 |
| LT057AA34E00 | TOSHIBA | 5.7" | 320×240 |
