Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 800(RGB)×600 (SVGA) |
|---|---|---|---|
| Operating Temperature: | -10 ~ 65 °C | Storage Temperature: | -20 ~ 80 °C |
| Brightness: | 350 Cd/m² (Typ.) | Input Voltage: | 3.3V (Typ.)(VDD) |
| Form Factor: | Flat Rectangle Display | Pixel Configuration: | RGB Vertical Stripe |
| High Light: | industrial touch screen display,industrial lcd panel |
||

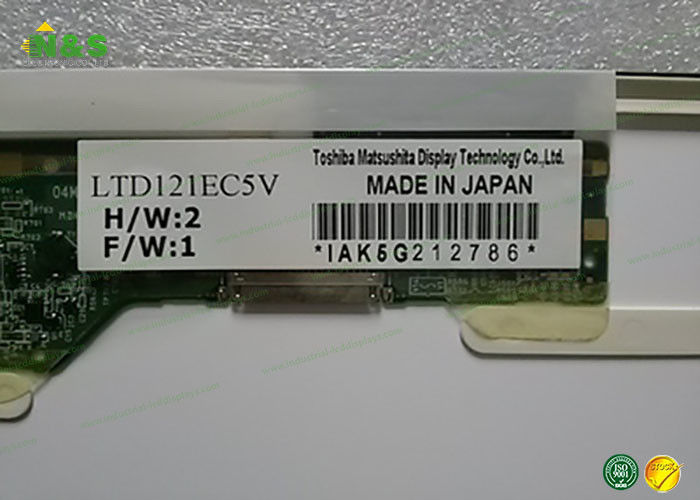

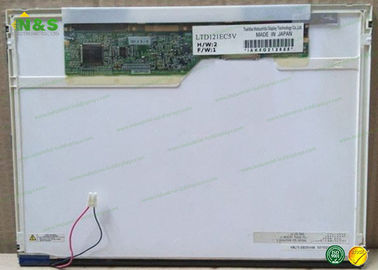

800*600 Industrial LCD Displays , LTD121EC5V 12.1 inch lcd display screen
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
General Features
Panel Brand : Toshiba Matsushita
Panel Model : LTD121C30S
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 12.1 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 246×184.5 mm
Outline : 278.3×209×11 mm
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 32 pins
Input Voltage : 3.3V (Typ.)(VDD)
Mechanical Features
Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 680g (Typ.)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 278.3×209 mm (H×V)
Outline Depth : 11.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Toshiba Matsushita LTD121C30S Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
Toshiba Matsushita LTD121C30S Backlight System
| Lamp Position : | Edge light type (Top side) |
| Lamp Type : | CCFL |
| Lamp Amount : | 2 pcs |
| Lamp Shape : | Straight |
| Lamp Life Time : | 50K(Typ.) (Hours) |
| Lamp Replaceable : | Replaceable |
| Lamp Voltage : | 520V (Typ.) |
| Lamp Current : | 3.0/6.5mA (Min./Max.) |
| Interface Type : | Connector |
