Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Response Time: | 6/6 (Typ.)(Tr/Td); 7 (Typ.)(G To G) |
|---|---|---|---|
| Signal Interface: | LVDS (4 Ch, 10-bit) , 92 Pins | Resolution: | 2560(RGB)×1600 , WQXGA |
| Surface: | Antiglare (Haze 13%), Hard Coating (3H) | Panel Size: | 30.0 Inch |
| Display Colors: | 1.07B (10-bit) , CIE1931 102% | Brightness: | 370 Cd/m² (Typ.) |
| High Light: | lg display panel,lg lcd display |
||

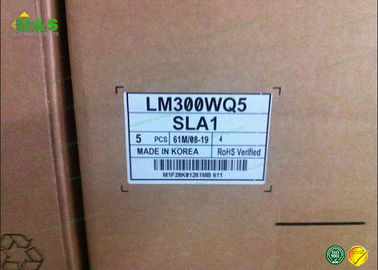

Original and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inch
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
LG Display LM300WQ5-SLA1 General Features
Panel Brand : LG Display
Panel Model : LM300WQ5-SLA1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 30.0 inch
Resolution : 2560(RGB)×1600 , WQXGA
Display Mode : H-IPS, Normally Black, Transmissive
Active Area : 641.28×400.8 mm
Outline : 677.3×436.8 mm
Surface : Antiglare (Haze 13%), Hard coating (3H)
Brightness : 370 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 1.07B (10-bit) , CIE1931 102%
Response Time : 6/6 (Typ.)(Tr/Td); 7 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 18 pcs CCFL Embedded (Inverter)
Signal Interface : LVDS (4 ch, 10-bit) , 92 pins
Input Voltage : 18.0V (Typ.)
LG Display LM300WQ5-SLA1 Mechanical Features
| Panel Size : | 30.0 inch |
| Dot Resolution : | 2560(RGB)×1600 (WQXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 101 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0835×0.2505 mm (H×V) |
| Pixel Pitch : | 0.2505×0.2505 mm (H×V) |
| Weight : | 5.10/5.40Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 13%), Hard coating (3H) |
| Active Area : | 641.28×400.8 mm (H×V) |
| Bezel Area : | 646.3×405.8 mm (H×V) |
| Outline Dimension : | 677.3×436.8 mm (H×V) |
| Outline Depth : | 42.30 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : H-IPS, Normally Black, Transmissive
Brightness : 370 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 1.07B (10-bit)
Color Gamut : 102% NTSC (CIE1931)
Response Time : 6/6 (Typ.)(Tr/Td); 7 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
LG Display LM300WQ5-SLA1 Signal Interface
| Signal Category : | LVDS |
| Signal Class : | LVDS (4 ch, 10-bit) |
| Input Voltage for Panel : | 18.0V (Typ.) |
| Input Current for Panel : | 612/720/828mA (Min./Typ./Max.) |
| Panel Power Consumption : | 13/14.95W (Typ./Max.) |
| Interface Type : |
Connector |
