Product Details:
|
| Resolution: | 1920(RGB)×1200 , WUXGA | Operating Temperature: | 0 ~ 50 °C |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60 °C | Size: | 17.3 Inch |
| Brightness: | 3000cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) |
| Display Mode: | S-IPS, Normally Black, Transmissive | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Response Time: | 35 (Typ.)(Tr+Td) | Display Colors: | 1.07B (10-bit) , CIE1931 100% |
| High Light: | lg display panel,lg replacement screen |
||

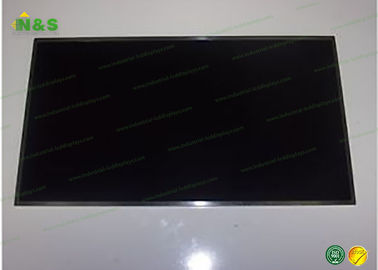

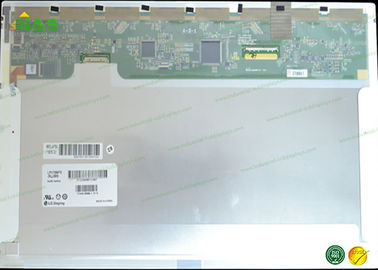

Wholesale and Originalo 17.3 inch P173WF3-SLB2 for high resolution 1920*1080 without touch
Why Choose our company?
Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands
LG Display LP173WF3-SLB2 Mechanical Features
Panel Size : 17.3 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 127 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0663×0.1989 mm (H×V)
Pixel Pitch : 0.1989×0.1989 mm (H×V)
Weight : 830g (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 381.888×214.812 mm (H×V)
Bezel Area : 386.70×219.75 mm (H×V)
Outline Dimension : 398.1×234.3 mm (H×V)
Outline Depth : 7.2 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
LG Display LP173WF3-SLB2 Optical Features
Display Mode : S-IPS, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 1.07B (10-bit)
Color Gamut : 100% NTSC (CIE1931)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
LG Display LP173WF3-SLB2 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP173WF3-SLB2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 17.3 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | S-IPS, Normally Black, Transmissive |
| Active Area : | 381.888×214.812 mm |
| Outline : | 398.1×234.3×7.2 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 1.07B (10-bit) , CIE1931 100% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | RGB LED Embedded (LED Driver) |
| Signal Interface : | LVDS (2 ch, 10-bit) , 50 pins |
| Input Voltage : | 3.3V (Typ.) |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
