Product Details:
|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Display Colors: | 262K (6-bit) , CIE1931 45% | Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~ 60 °C | Size: | 15.6 Inch |
| Brightness: | 220cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) |
| Shape Style: | Flat (PCBA Flat, Depth 3.4~4.0mm) | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | lg lcd display,lg replacement screen |
||

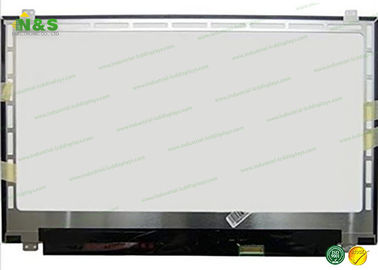

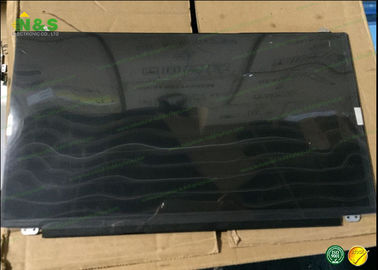

15.6 inch 1366*768 high brightness LP156WHB-TPC1 TN, Normally White, Transmissive without touch
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us..
Different payment term in different country; our company reserve the right of final explanation.
Please contact us for more information. Thank you.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Product Information:
Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 400g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 347.5×196.8 mm (H×V)
Outline Dimension : 359.5×223.5 mm (H×V)
Outline Depth : 3.8 (Max.) mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets : Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait : Landscape type
Touch Panel : Without
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |
More detial:
Panel Brand : LG Display
Panel Model : LP156WHB-TPC1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 344.232×193.536 mm
Outline : 359.5×223.5×3.8 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 350:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED [8S6P: 8 Serial, 6 Parallel] Embedded (LED Driver)

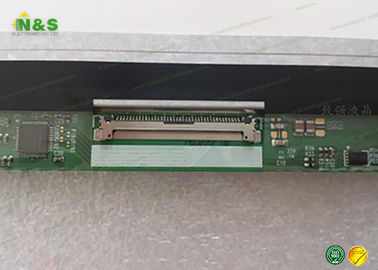

Signal Interface : eDP (1 Lane) , 30 pins
Input Voltage : 3.3V (Typ.)
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
[Refund & Replacement]
You will receive a 180-360 days form, fit, and function of part warranty to make sure you receive exactly what you ordered.
If you have any other questions for our LCD panels please feel free to contact us.
We still have other LCD panel models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Brands: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE and more.
