Product Details:
|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Weight: | 400g (Max.) | Dot Pitch: | 0.084×0.252 Mm (H×V) |
| Pixel Pitch: | 0.252×0.252 Mm (H×V) | Size: | 15.6 Inch |
| Brightness: | 200cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | lg lcd display,lg replacement screen |
||

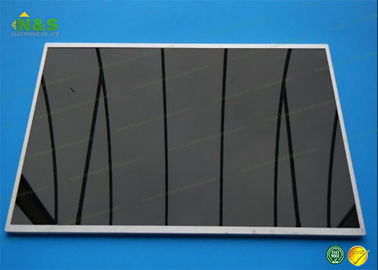

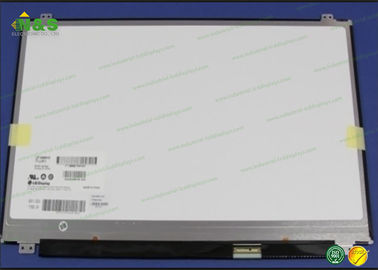

TN, Normally White, Transmissive LP156WH3-TLS2 LG LCD Panel with 15.6 inch and 1366*768
General Features
| Panel Brand : | LG Display |
| Panel Model : | LP156WH3-TLS2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 344.232×193.536 mm |
| Outline : | 359.5×223.5×3.8 mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 400g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 347.5×196.8 mm (H×V) |
| Outline Dimension : | 359.5×223.5 mm (H×V) |
| Outline Depth : | 3.8 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Max.)(5/13 points)
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
Guarantee:

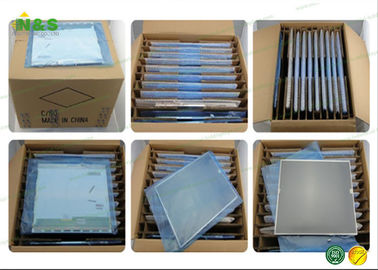

(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us..
Different payment term in different country; our company reserve the right of final explanation.
Please contact us for more information. Thank you.
Features:
1) High range of temperature;
2) LCD Display Grade: 100% New , Grade A+;
3) LVDS Interface and VGA interface
4) High-speed response, Low power consumption
5) Panel Type: TFT
6) Surface Treatment: Haze 25%, Hard coating(3H)
7) Competitive price, offer 1 year of warranty;
8) Original technology support.
9) ISO9001 certification.
