Product Details:
|
| Aspect Ratio: | 16:9 (H:V) | Display Mode: | AH-IPS, Normally Black, Transmissive |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) | Pixel Configuration: | RGB Vertical Stripe |
| Weight: | 340/350g (Typ./Max.) | Outline Depth: | 3.0/3.2 (Typ./Max.) Mm |
| Surface: | Glare (Haze 0%) | Panel Size: | 15.6 Inch |
| High Light: | lg display panel,lg replacement screen |
||

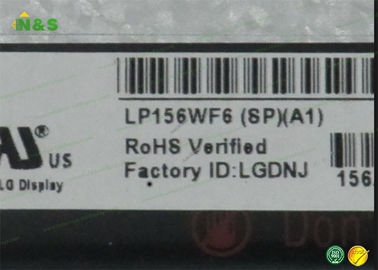

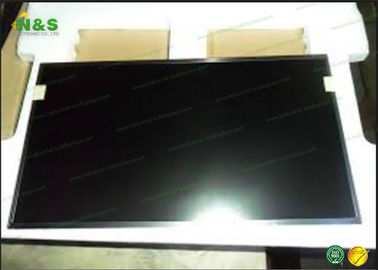

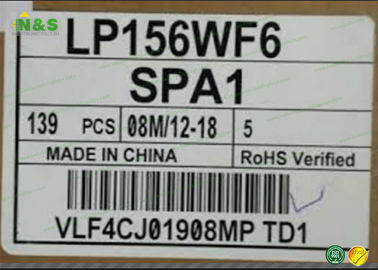

15.6 inch and 1920*1080 LG LCD Panel LP156WF6-SPA1 AH-IPS, Normally Black, Transmissive
[Delivery Time]
The LCD Screen Replacements In stock, ship within 1-3 days.
[Quality Guarantee]
100% New and Original
180-365 Days quality warranty
[Payment Opinions]
1. T/T (Wire Transfer)
2. Western Union
3. Moneygram
4. Paypal
Optical Features
Display Mode : AH-IPS, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.67 (Max.)(5/13 points)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
General Features
Panel Brand : LG Display
Panel Model : LP156WF6-SPA1
Panel Size : 15.6 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : AH-IPS, Normally Black, Transmissive
Active Area : 344.16×193.59 mm
Outline : 359.5×223.8×3.2 mm
Shape Style : Slim (PCBA Flat, Depth ≤3.2mm)
Surface : Glare (Haze 0%)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 72%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : eDP (2 Lanes) , 30 pins
Input Voltage : 3.3V (Typ.)
Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch : | 0.17925×0.17925 mm (H×V) |
| Weight : | 340/350g (Typ./Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 344.16×193.59 mm (H×V) |
| Bezel Area : | 347.45×196.8 mm (H×V) |
| Outline Dimension : | 359.5×223.8 mm (H×V) |
| Outline Depth : | 3.0/3.2 (Typ./Max.) mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
