Product Details:
|
| Brightness: | 300 Cd/m² (Typ.) | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Aspect Ratio: | 16:9 (H:V) | Panel Brand: | LG Display |
| Resolution: | 1920(RGB)×1080 (FHD) | Pixel Configuration: | RGB Vertical Stripe |
| Form Factor: | Flat Rectangle Display | Weight: | 320/330g (Typ./Max.) |
| Outline Depth: | 3.4 (Max.) Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | lg display panel,lg lcd display |
||

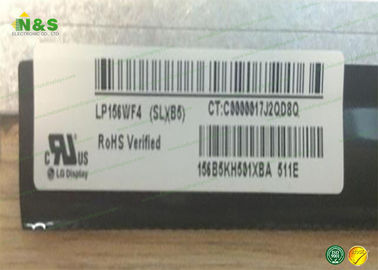

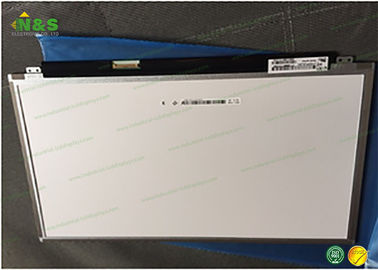

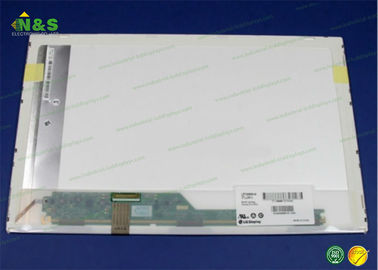

Wholesale LG LCD Panel LP156WF4-SLB5 with 15.6 inch, 1920*1080 without touch
We still have other LCD panel models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Brands: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE and more.
Optical Features
| Display Mode : | AH-IPS, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity: | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |
General Features
Panel Brand : LG Display
Panel Model : LP156WF4-SLB5
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.6 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : AH-IPS, Normally Black, Transmissive
Active Area : 344.16×193.59 mm
Outline : 359.5×224.13×3.4 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 60%
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6 strings WLED Embedded (LED Driver)
Signal Interface : LVDS (2 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch : | 0.17925×0.17925 mm (H×V) |
| Weight : | 320/330g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 344.16×193.59 mm (H×V) |
| Bezel Area : | 347.55×196.9 mm (H×V) |
| Outline Dimension : | 359.5×224.13 mm (H×V) |
| Outline Depth : | 3.4 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us..
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
| LB115U01-RD01 | LG Display | 11.5" | 1600×1200 |
| LB097WX1-RD01 | LG Display | 9.7" | 1200×825 |
| LB071WS1-RD01 | LG Display | 7.1" | 1024×600 |
| LB060S01-RD02 | LG Display | 6.0" | 800×600 |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
Different payment term in different country; our company reserve the right of final explanation.
Please contact us for more information. Thank you.
