Product Details:
|
| Dot Resolution: | 640(RGB)×480 (VGA) | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Panel Brand: | LG. LCD | Brightness: | 200 Cd/m² (Typ.) |
| Weight: | 415g (Typ.) | Aspect Ratio: | 4:3 (H:V) |
| Display Mode: | TN, Normally White, Transmissive | Viewing Direction: | 6 O'clock |
| High Light: | lg display panel,lg lcd display |
||

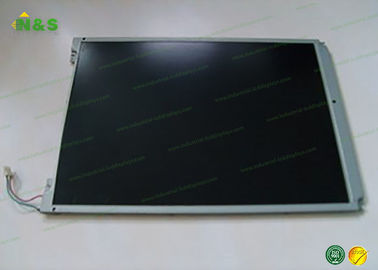

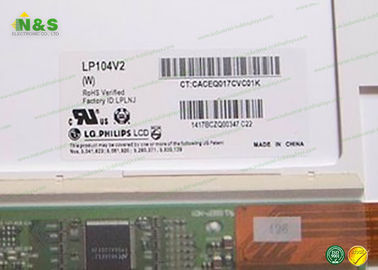

Without touch, LG. LCD LP104V2-W for 10.4inch,640*480 Flat Rectangle Display
LG. LCD LP104V2-W Backlight System:
Lamp Position : Edge light type (Top side)
Lamp Type : CCFL
Lamp Amount : 1 pcs
Lamp Shape : Straight
Lamp Life Time : 20K(Min.) (Hours)
Lamp Voltage : 505V (Typ.)
Lamp Current : 2.0/5.5/6.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/60/80KHz (Min./Typ./Max.)
Lamp Startup Voltage : 845/1015V (Max.)(Ta=+25/0℃)
Lamps Power Consumption : 2.8/2.9W (Typ./Max.)
Interface Type : Connector
LG. LCD LP104V2-W Optical Features:
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 150 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 70/70/45/50 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.322; Wy:0.339
LG. LCD LP104V2-W Mechanical Features:
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 415g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×163.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 8.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
