Product Details:
|
| Panel Size: | 18.5 Inch | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Outline: | 430.4×254.6×12 Mm | Contrast Ratio: | 1000:1 (Typ.) |
| Lamp Type: | 2 Pcs CCFL | Brightness: | 300 Cd/m² (Typ.) |
| Highlight: | auo lcd screen,auo lcd display |
||
18.5 inch HD AUO LCD Panel G185XW01 V0 with 1366*768 Resolution
AUO G185XW01 V0 General Characteristics
| Panel Brand : | AUO |
| Panel Model : | G185XW01 V0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
What is our advantage?
Primary Competitive Advantages:
AUO G185XW01-V0 Structural Parameter
| Operation Temperature | 0 °C ~ 50 °C |
| Storage Temperature | -20°C ~ 60°C |
| Surface Technology | Antiglare, Hard coating (3H) |
| Active Area | 409.8×230.4 mm |
| Display Area | 413.4×234.0 |
| Outline | 430.40× 254.60×11.60 mm |
| Touch Panel | Without |
| Lamp Position | Edge light type (Top and Bottom) |
| Backlight | CCFL |
| Lamp Number | 2 pcs |
| Lamp Shape | Straight |
| Life Time of Lamp | 50K Hours |
| Voltage of Lamp | 758V |
| Current of Lamp | 7.5mA |
| Working frequency of BL | 40/50/80KHz (Min./Typ./Max.) |
| Starting Voltage of Backlight | 1110/1340V (Ta=+25/0℃) |
| Driver of Backlight | Without |
| Kind of Backlight Interface | Connector |
| Brand of Backlight Interface | YEONHO |
| Model of Backlight Interface | 35001HS-02L |
| Quantity of Backlight Interface | 2 pcs |
| Pitch of Backlight Interface | 3.5 mm mm |
| Backlight Interface Define | BLL-2PINS-HL |
Product Picture for G185XW01 V0

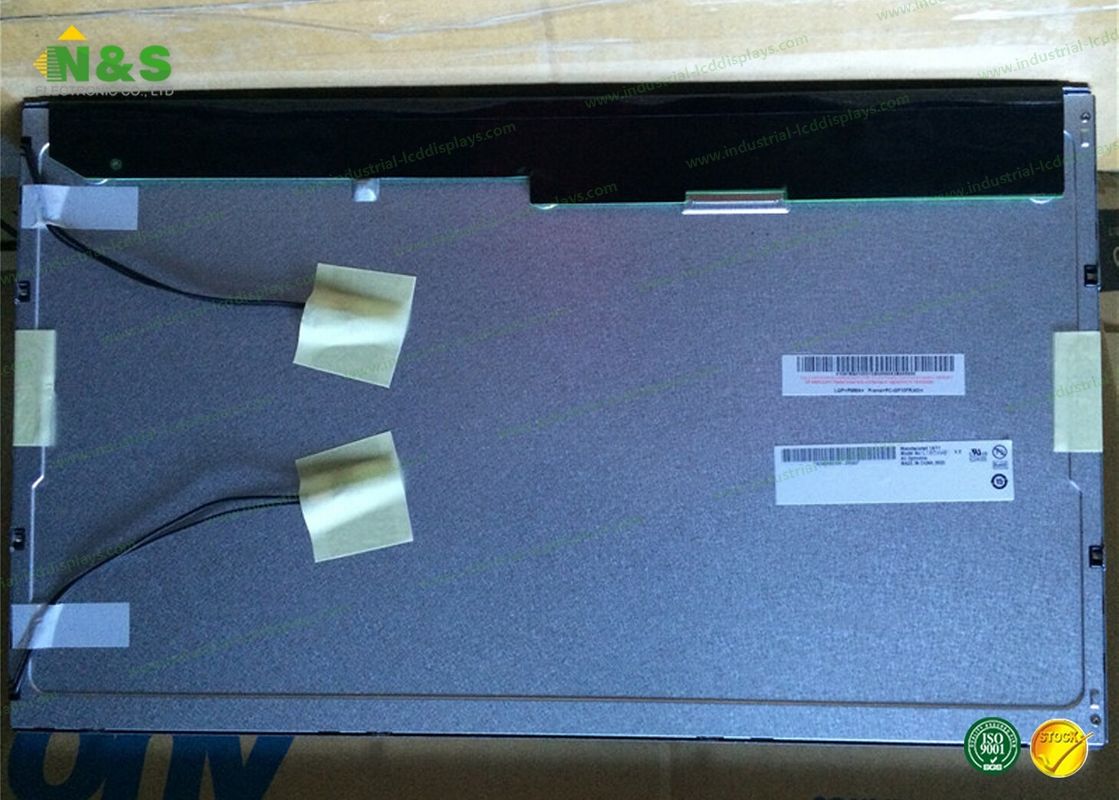

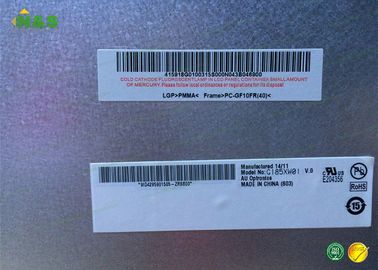

Backside Picture
Tabs Picture

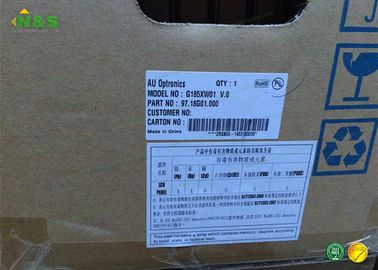

Packaging Picture
